Torque Limiter Manufacturer, Supplier & Exporter India

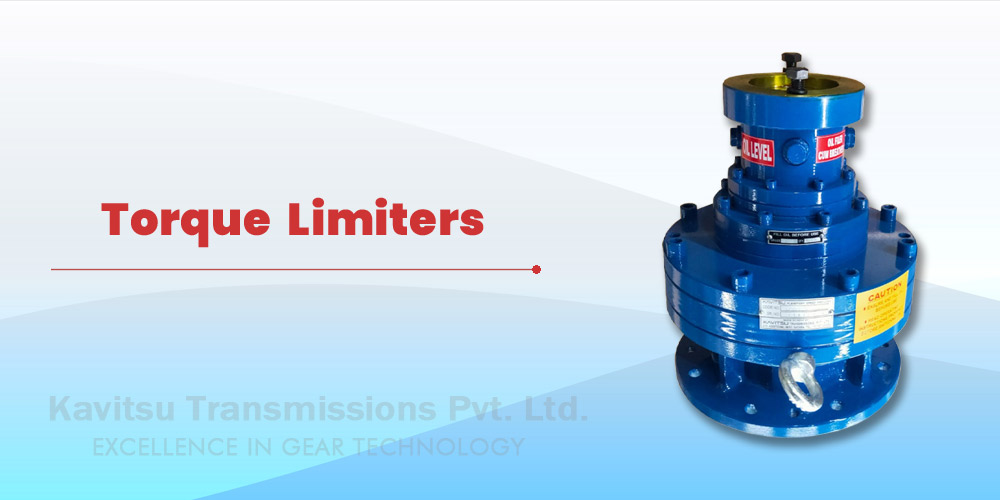

Torque limiter - mechanical overload protection coupling by Kavitsu

A torque limiter protects a drive from overload. When the torque rises above a preset value, for example when a conveyor jams or a crusher meets tramp metal, the torque limiter slips and stops the excess torque from reaching the gearbox, motor and machine. Kavitsu Transmissions manufactures torque limiters in Satara, Maharashtra, to protect our own gearboxes and other drives.

A torque limiter costs a fraction of a gearbox repair, and it can prevent a long, costly shutdown.

Get a Quote for Torque Limiter

Torque Limiter Specifications

Parameter	Kavitsu Standard Range
Type	Friction-type slip torque limiter
Setting	Adjustable slip torque, set with spring pressure
Mounting	Between motor, gearbox and driven machine; with sprocket, pulley or coupling
Reset	Automatic: resumes drive when the overload clears
Sizing	Selected to suit the drive's rated torque and shaft size

Torque Limiter Manufacturer, Supplier & Exporter

Torque Limiter Manufacturer

Torque limiters are made at our Satara works and matched to Kavitsu and other makes of gearbox.

Torque Limiter Supplier

We supply torque limiters to OEMs and plant maintenance teams across India.

Torque Limiter Exporter

Torque limiters are exported along with our gearboxes and as stand-alone protection devices.

Why Use a Torque Limiter?

Protects gear teeth, shafts and bearings from shock and jam loads
Prevents motor burnout and coupling damage
Reduces downtime and repair cost
Adjustable setting to suit the actual working load

Applications

Conveyors, crushers, mixers, screw feeders, packaging machines, cranes and hoists, and any drive at risk of jamming or shock overload. Torque limiters are often fitted with planetary gearboxes, worm gearboxes and shaft mounted speed reducers.

Information Needed to Quote a Torque Limiter

To recommend the right model quickly, please share:

Rated torque of the drive and the required slip torque
Shaft diameter and keyway
Connecting element: sprocket, pulley or coupling
Speed of the shaft where it is fitted
Type of overload: jam, shock or start-up

Every Kavitsu unit is assembled and tested in-house at Satara before dispatch. Test certificates and GA drawings are supplied with project and export orders.

Request a Quote for Torque Limiter

Send your torque, speed and application details. We reply with a technical recommendation and price from our Satara factory.

Send Enquiry View Planetary Gearboxes

Frequently Asked Questions – Torque Limiter

Spring pressure holds friction linings between the driving and driven parts. When the torque exceeds the set value, the linings slip, so the excess torque does not reach the machine.

Yes. The slip torque is set by adjusting the spring pressure to suit the drive's working load.

It is usually fitted between the gearbox and the driven machine, or between the motor and the gearbox, with a sprocket, pulley or coupling.
