Shaft Mounted Speed Reducer (SMSR) Manufacturer India

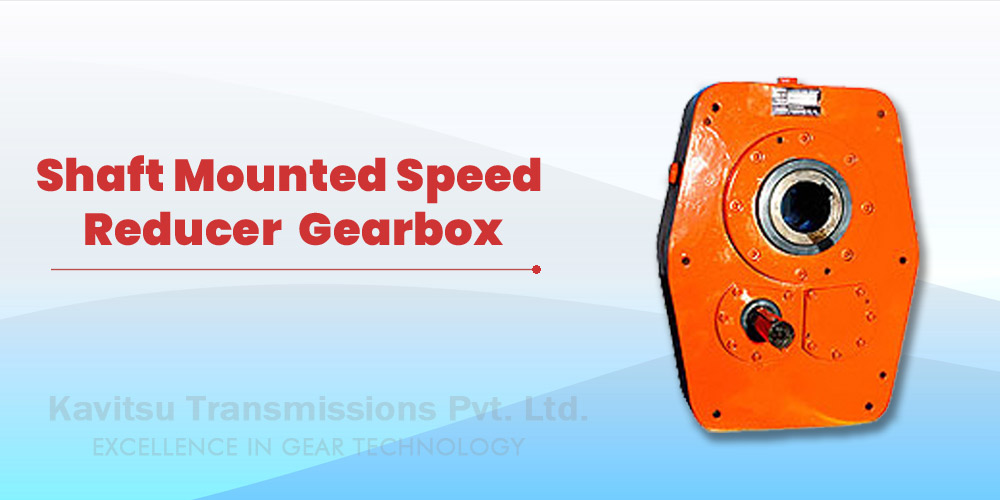

Shaft mounted speed reducer SMSR gearbox by Kavitsu

A shaft mounted speed reducer (SMSR) slides directly onto the driven shaft through its hollow output bore and is held by a torque arm. No foundation or output coupling is needed. The motor usually drives it through V-belts. Kavitsu Transmissions manufactures SMSR gearboxes in Satara, Maharashtra, in both square and round housing shapes.

SMSR gearboxes are a simple, economical choice for conveyors, crushers and screens, where quick installation and easy belt-based speed adjustment matter.

Get a Quote for Shaft Mounted Speed Reducer

SMSR Gearbox Specifications

Parameter	Kavitsu Standard Range
Output torque	200 Nm to 20,000 Nm
Reduction ratio	5:1 to 30:1
Input power	0.18 kW to 20 kW
Housing shape	Square or round
Mounting	On the driven shaft with a torque arm
Input	V-belt and pulley from the motor
Output	Hollow bore to suit the driven shaft

Shaft Mounted Speed Reducer Manufacturer, Supplier & Exporter

Shaft Mounted Speed Reducer Manufacturer

SMSR gearboxes are produced at our Satara works in square and round housing versions.

Shaft Mounted Speed Reducer Supplier

We supply SMSR gearboxes to crusher, conveyor and screen manufacturers and to plants across India.

Shaft Mounted Speed Reducer Exporter

Shaft mounted speed reducers are exported to quarrying and bulk-handling users overseas.

Advantages of a Shaft Mounted Speed Reducer

Mounts directly on the driven shaft, with no foundation or output coupling
Output speed can be fine-tuned by changing the V-belt pulley size
Quick installation and removal for maintenance
Economical drive for moderate torque

Applications

Belt conveyors, screw conveyors, bucket elevators, crushers, vibrating screens, mixers, and material handling in stone crushing, cement, sugar, fertiliser and agro-processing plants.

For higher torque, see our planetary conveyor drives and planetary gearbox range. A helical gearbox is another option for foot-mounted drives.

Information Needed to Quote a Shaft Mounted Speed Reducer

To recommend the right model quickly, please share:

Driven shaft diameter
Output speed required
Motor kW and rpm
Preferred housing shape: square or round
Type of machine and daily running hours

Every Kavitsu unit is assembled and tested in-house at Satara before dispatch. Test certificates and GA drawings are supplied with project and export orders.

Request a Quote for Shaft Mounted Speed Reducer

Send your torque, speed and application details. We reply with a technical recommendation and price from our Satara factory.

Send Enquiry View Planetary Gearboxes
