Bevel Planetary Speed Reducer Manufacturer India

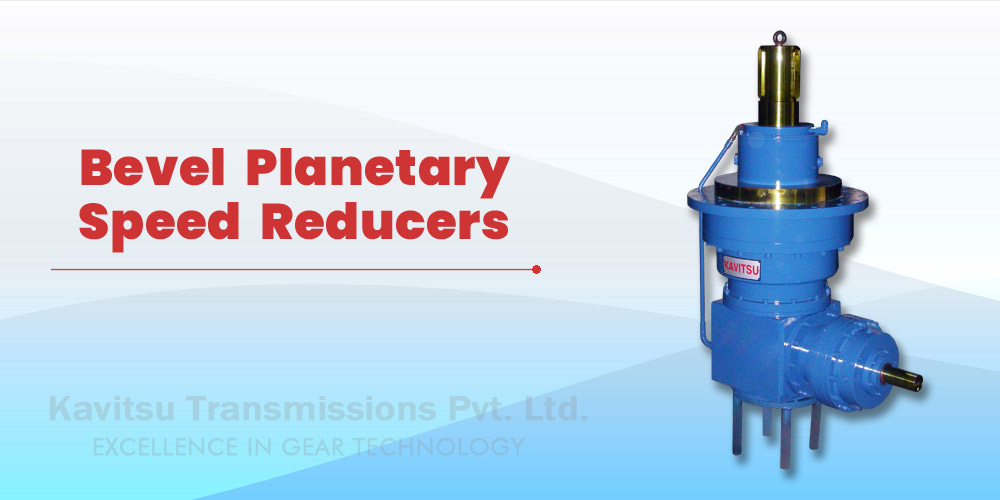

Bevel planetary speed reducer - right angle planetary gearbox by Kavitsu

A bevel planetary speed reducer combines a spiral bevel input stage with a planetary gearbox output. The result is a right-angle drive that keeps the high torque density of planetary gearing. Kavitsu Transmissions has manufactured bevel planetary speed reducers in Satara, Maharashtra since the 1990s. We supply them across India and export them worldwide.

The bevel stage turns the drive through 90°, so the motor can sit parallel to the conveyor or alongside a vessel. This saves floor space and simplifies the layout. The planetary stages behind it carry the heavy output torque.

Get a Quote for Bevel Planetary Speed Reducer

Bevel Planetary Speed Reducer Specifications

Parameter	Kavitsu Standard Range
Output torque	40 Nm to 50,00,000 Nm
Reduction ratio	3:1 to 15,000:1
Input power	Fractional HP to 500 HP
Configuration	Right-angle: bevel input stage + 1 to 3 planetary stages
Mounting	Foot, flange and agitator type
Input	Free input shaft or hollow input; motor or hydraulic motor adaptor
Output	Solid keyed, splined or hollow shaft with shrink disc
Housing	SG cast iron or cast steel

Bevel Planetary Speed Reducer Manufacturer, Supplier & Exporter

Bevel Planetary Speed Reducer Manufacturer

Bevel gear pairs and planetary stages are assembled and tested at our Satara works, built on the same modular series as our planetary gearboxes.

Bevel Planetary Speed Reducer Supplier

We supply bevel planetary reducers to conveyor OEMs, agitator builders and plant maintenance teams across India.

Bevel Planetary Speed Reducer Exporter

Bevel planetary speed reducers are exported with full documentation to the Middle East, Africa, South-East Asia and beyond.

Why Use a Right-Angle Planetary Drive?

Compact layout: the motor runs parallel to the driven machine instead of sticking out in line with it.
High torque: the planetary output stages share the load across several planet gears.
Agitator-ready: the vertical agitator version carries mixer shaft loads on reinforced output bearings.
Efficient: spiral bevel and planetary stages are far more efficient than a worm right-angle drive at the same torque.

Applications

Belt conveyor head drives, bucket elevators, agitators and mixers in chemical and pharma plants, sugar and cement plant drives, clarifier and thickener drives in water treatment, and travel drives on heavy machinery.

Need an inline drive instead? See our planetary speed reducers. For lighter right-angle duty, a worm gearbox may also suit.

Information Needed to Quote a Bevel Planetary Speed Reducer

To recommend the right model quickly, please share:

Required output torque (Nm) and output speed (rpm)
Motor kW and rpm, or hydraulic motor details
Mounting: foot, flange or agitator (vertical)
Output shaft: solid, splined or hollow with shrink disc
For agitators: shaft overhang, radial and axial loads
Daily operating hours and type of load

Every Kavitsu unit is assembled and tested in-house at Satara before dispatch. Test certificates and GA drawings are supplied with project and export orders.

Request a Quote for Bevel Planetary Speed Reducer

Send your torque, speed and application details. We reply with a technical recommendation and price from our Satara factory.

Send Enquiry View Planetary Gearboxes

Frequently Asked Questions – Bevel Planetary Speed Reducer

It is a right-angle gearbox in which a bevel gear pair turns the drive through 90 degrees and one or more planetary stages provide the main reduction and output torque.

Kavitsu bevel planetary speed reducers are available from 40 Nm up to 50,00,000 Nm output torque, with ratios from 3:1 to 15,000:1.

For high torque and continuous duty, yes. Its efficiency is much higher than a worm gearbox. A worm gearbox can still suit lighter, intermittent or self-locking duties.

Yes. We build an agitator version with a vertical output and reinforced output bearings to carry mixer shaft loads.
