Parallel Axis & Uni Axis Twin Output Gearbox India

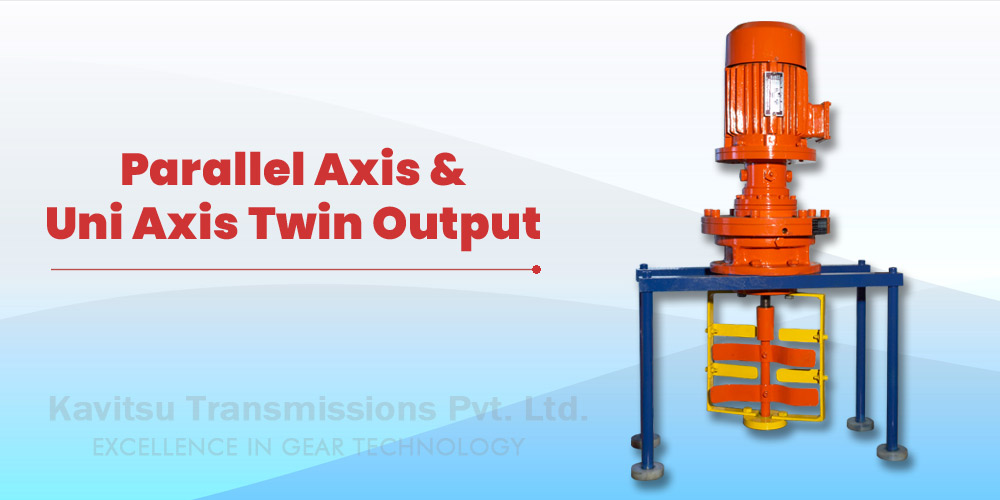

Planetary parallel axis and uni axis twin output gearbox by Kavitsu

A twin output planetary gearbox drives two output shafts from a single motor input. Kavitsu Transmissions manufactures two versions in Satara, Maharashtra. In the parallel axis twin output, the two outputs run on parallel, offset axes. In the uni axis twin output, both outputs sit on the same axis, one at each side of the gearbox.

A twin output gearbox removes the need for a second gearbox or a long line shaft. It keeps both outputs synchronised and cuts installation space and cost.

Get a Quote for Twin Output Gearbox

Twin Output Gearbox Specifications

Parameter	Kavitsu Standard Range
Versions	Parallel axis twin output; uni axis (common axis) twin output
Input	Single electric motor, IEC flange or free shaft
Gearing	Kavitsu planetary stages with output distribution
Outputs	Two solid keyed or hollow shafts; same or different speeds on request
Mounting	Foot or flange
Design	Custom engineered to the machine layout

Twin Output Gearbox Manufacturer, Supplier & Exporter

Twin Output Gearbox Manufacturer

Twin output gearboxes are custom-engineered and built at our Satara works on proven planetary gearing.

Twin Output Gearbox Supplier

We supply twin output planetary gearboxes to machine builders and process plants across India.

Twin Output Gearbox Exporter

Custom twin output drives are exported to OEMs overseas with drawings and full documentation.

Where Twin Output Gearboxes Are Used

Machines with two rolls, two shafts or two travel wheels driven in step
Twin-shaft mixers and kneaders
Gantry and bogie travel drives on both rails
Special-purpose machines in the steel, paper, textile and process industries

Each twin output gearbox is designed to suit the machine. Send us the shaft centre distance, the torque and speed needed at each output, and the mounting layout. Related products: planetary gearbox and special multi speed gearbox.

Information Needed to Quote a Twin Output Gearbox

To recommend the right model quickly, please share:

Torque and speed needed at each output
Centre distance between outputs (parallel axis), or shaft extension lengths (uni axis)
Direction of rotation of each output
Motor power and speed
Machine layout drawing

Every Kavitsu unit is assembled and tested in-house at Satara before dispatch. Test certificates and GA drawings are supplied with project and export orders.

Request a Quote for Twin Output Gearbox

Send your torque, speed and application details. We reply with a technical recommendation and price from our Satara factory.

Send Enquiry View Planetary Gearboxes

Frequently Asked Questions – Twin Output Gearbox

In a parallel axis twin output, the two output shafts are on separate parallel axes. In a uni axis twin output, both output shafts are on the same axis and come out of opposite sides of the gearbox.

Yes. On request, the gearbox can be designed with different ratios for the two outputs.

Yes. Each is engineered for the machine's layout, torque and speed requirements.
