Planetary Creep Drive Manufacturer in India

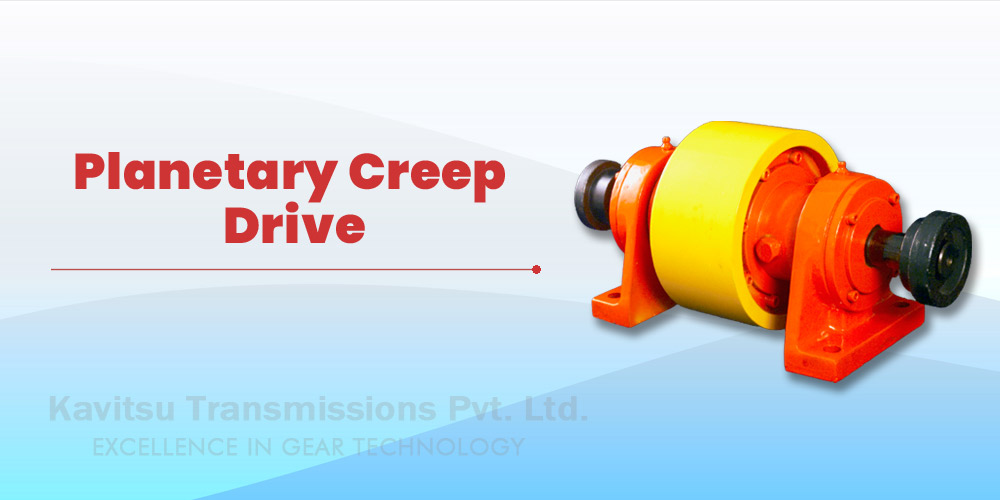

A planetary creep drive is an auxiliary drive that turns a belt conveyor at a very slow “creep” speed for belt inspection, splicing, cleaning and maintenance. The main drive stays off. Kavitsu Transmissions manufactures planetary creep drives in Satara, Maharashtra, specially designed for belt conveyors.

The creep drive attaches to the main drive line and engages only when needed. It is compact, needs only a small motor, and works together with the conveyor's thrustor brake.

Planetary Creep Drive Specifications

Planetary Creep Drive Manufacturer, Supplier & Exporter

Benefits of a Creep Drive

• Safe, slow belt movement for inspection and splicing without running the main motor
• Lower energy use and less wear on the main drive during maintenance
• Compact planetary design that integrates with the existing brake drum
• Precise positioning of the belt joint at the splicing station

Applications

Long belt conveyors in steel plants, mines, cement plants, power station coal handling and ports, and wherever regular belt inspection or maintenance is needed.

Creep drives are usually supplied with a planetary belt conveyor drive. See also our main planetary gearbox range.

Information Needed to Quote a Planetary Creep Drive

To recommend the right model quickly, please share:

• Main conveyor drive details (motor kW, gearbox)
• Thrustor brake drum diameter (100-500 mm)
• Required creep speed of the belt
• Space available near the main drive
• Supply voltage for the creep motor

Every Kavitsu unit is assembled and tested in-house at Satara before dispatch. Test certificates and GA drawings are supplied with project and export orders.
