Planetary Crystallizer Drive Manufacturer India

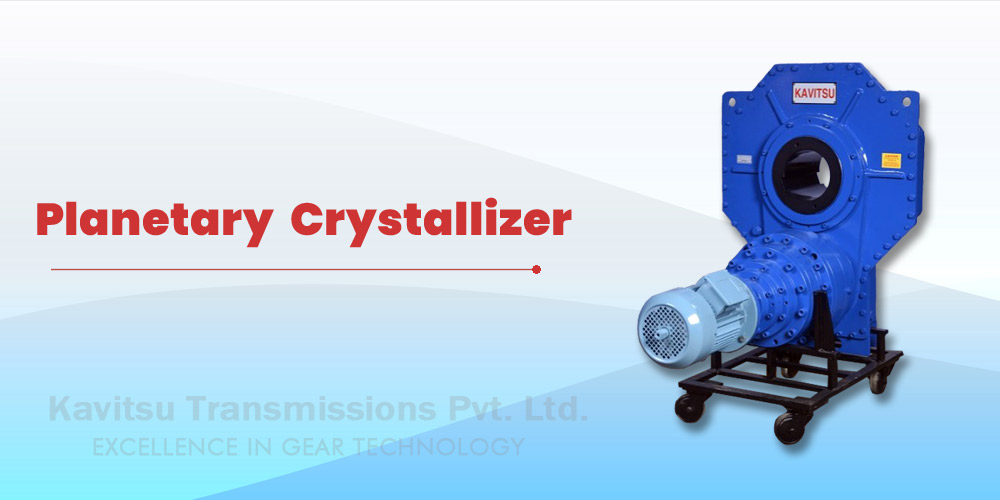

Planetary crystallizer drive gearbox for sugar factory massecuite crystallizer

A planetary crystallizer drive turns the stirrer of a massecuite crystallizer in a sugar factory at very low speed and very high torque. Kavitsu Transmissions has made crystallizer gearboxes in Satara, Maharashtra for many years and has a long track record in the Indian sugar industry.

Crystallizers run around the clock through the crushing season. The drive must deliver steady torque at below 1 rpm, take the load of thick C-massecuite, and run without failure for the whole season. Kavitsu’s KT-CH series of planetary crystallizer drives is designed for this duty.

Get a Quote for Planetary Crystallizer Drive

Crystallizer Drive Selection Data

Parameter	Kavitsu Standard Range
Series	KT-07CH, KT-08CH, KT-09CH, KT-010CH
Crystallizer capacity	20 MT to 60 MT massecuite
Massecuite type	A, B and C massecuite
Stirrer speed	1 rpm, 0.8, 0.66, 0.5, 0.4 and 0.33 rpm
Drive motor	From 1 HP to 5 HP, depending on capacity and speed
Service factor	Typically 2.0 and above at the selected rating
Gearing	Multi-stage planetary for very high reduction

Our selection chart matches the KT-CH model to crystallizer capacity, massecuite type and stirrer speed. Higher capacities and slower speeds move up to the KT-08CH, KT-09CH and KT-010CH sizes. Share your crystallizer data and we will recommend the model and motor rating.

Planetary Crystallizer Drive Manufacturer, Supplier & Exporter

Planetary Crystallizer Drive Manufacturer

KT-CH crystallizer drives are designed and built at our Satara works, in the heart of Maharashtra's sugar belt.

Planetary Crystallizer Drive Supplier

We supply crystallizer drives to co-operative and private sugar factories and to sugar plant equipment makers across India.

Planetary Crystallizer Drive Exporter

Crystallizer drives are exported to sugar producers in Africa, South-East Asia and other cane-growing regions.

Why Sugar Factories Choose Kavitsu

Selection chart built from years of sugar-industry experience
High service factors for trouble-free running through the whole season
Low power requirement thanks to efficient planetary gearing
Kavitsu has been recognised by the Commissionerate of Sugar, Maharashtra State, and the National Federation of Co-operative Sugar Factories
Spares and service support during the season

Also see our planetary gearbox range for mixers, cane carriers and other sugar plant drives.

Information Needed to Quote a Planetary Crystallizer Drive

To recommend the right model quickly, please share:

Crystallizer capacity (MT)
Massecuite type: A, B or C
Required stirrer speed (rpm)
Existing drive and mounting details (for replacements)
Supply voltage and motor preference

Every Kavitsu unit is assembled and tested in-house at Satara before dispatch. Test certificates and GA drawings are supplied with project and export orders.

Request a Quote for Planetary Crystallizer Drive

Send your torque, speed and application details. We reply with a technical recommendation and price from our Satara factory.

Send Enquiry View Planetary Gearboxes

Frequently Asked Questions – Planetary Crystallizer Drive

Typical stirrer speeds are 1 rpm down to 0.33 rpm. Kavitsu selects the drive for the specific speed, capacity and massecuite type.

The KT-08CH or KT-09CH is typically used, depending on the massecuite type and stirrer speed. Share your data and we will confirm the model and motor HP.

Yes. We supply the planetary gearbox with a matching motor and mounting arrangement as a complete drive.
